Current Motorola VME Inventory:

MVME2700             Motorola Logo              MVME2700

Motorola Single Board Computer - MVME2700
    • MPC750 class 32-bit microprocessor
    • 32KB/32KB L1 cache
    • 1MB backside L2 cache
    • 128MB or 256MB ECC DRAM on-board memory
    • 8MB on-board Flash, 1MB socketed
    • 64-bit PCI mezzanine connector
    • On-board debug monitor with self-test diagnostics
    • IEEE P1386.1 compatible 32/64-bit PMC expansion slot
    • Two or three async, one or two sync/async serial ports
    • Ethernet transceiver interface with 32-bit PCI local bus DMA
    • 8- or 16-bit Fast SCSI-2 bus interface
    • Parallel, floppy, keyboard, and mouse interfaces
    • 8KB x 8 NVRAM and time-of-day clock with replaceable battery backup
    • Four 32-bit timers, one watchdog timer
    • One VME slot, even when configured with PMC module

Model Number  Description Qty
MVME2700-1231 233MHz 750, 32MB, FLASH, L2, 761 I/O 13
MVME2700-1351 266MHz 750, 128MB, FLASH, L2, 761 I/O 20
MVME2700-3231A 233MHZ 750, 32MB, FLASH, L2, 761 I/O 41
MVME2700-3351 266MHZ 750, 128MB, FLASH, L2, 761 I/O 12
MVME2700-3361 266MHZ 750, 256MB, FLASH, L2, 761 I/O 27
MVME2700-3461 366MHZ 750, 128MB or 256MB, FLASH, L2, 761 I/O 19
MVME2700 266MHz 750, 256MB, FLASH, L2, 761 I/O 31
MVME2700-4461 366 MHz MPC750 class, 256MB ECC DRAM 64





Motorola 147             Motorola Logo              147-2

Motorola Single Board Computer - MVME - 147
  • 16, 25, or 33.33 MHz MC68030 enhanced 32-bit microprocessor
  • 16, 25, or 33.33 MHz MC68882 floating-point coprocessor
  • 4, 8, 16, or 32MB of shared DRAM, with programmable parity
  • 4K x 8 SRAM and time-of-day clock with battery
  • Four 28/32-pin ROM/PROM/EPROM/EEPROM sockets, 16-bits wide
  • A32/D32 VMEbus master/slave interface with system controller function
  • Four EIA-232-D serial communications ports
  • Centronics® compatible printer port
  • Two 16-bit timers and watchdog timer
  • SCSI bus interface with DMA
  • Ethernet transceiver interface
  • 4-level requester, 7-level interrupter, and 7-level interrupt handler for VMEbus
  • On-board debugger and diagnostic firmware

Model Number  Description Qty
MVME110-1 68000 8 MHZ, 1 CHANNEL, SERIAL, RS232C 12
MVME133 68020 CPU, 12.5Mhz, 1MB memory, 3 Serial ports 1
MVME133-1 68020 CPU, 16.67Mhz, 1MB memory, 3 Serial ports 3
MVME133A-20 68020 CPU, 20Mhz, 1MB memory, 3 Serial ports 1
MVME133SA 68020 CPU, 20Mhz, 1MB memory, 3 Serial ports 7
MVME141-1 68030 CPU, 25Mhz, VSB A32/D32, 2 SIO 1
MVME141-3 68030 CPU, 1
MVME147 68030 CPU, 20Mhz, 4MB memory,  6
MVME147-010 68030 CPU, 16Mhz, 4MB DRAM, 4 SIO, 1 PIO 5
MVME147-010A 68030 CPU, 16.67MHZ, 4MB, SCSI, ETHERNET 4
MVME147-011 68030 CPU, 25Mhz, 4MB memory 15
MVME147-011A  68030 CPU, 25MHZ, 4MB, SCSI, ETHERNET 6
MVME147-012 68030 CPU, 25Mhz, 8MB memory 4
MVME147-012A 68030 CPU, 25Mhz, 8MB memory 1
MVME147-013 68030 CPU, 25Mhz, 16MB memory 29
MVME147-013A 68030 CPU, 25Mhz, 16MB memory 18
MVME147-022 68030 CPU, 32Mhz, 8MB memory 47
MVME147-022A 68030 CPU, 33MHZ, 16MB, SCSI, ETHERNET 14
MVME147-024 68030 CPU, 33MHZ, 16MB 1
MVME147S 68030 CPU, 20MHZ, 4MB 2
MVME147S-1 68030 CPU, 25MHZ, 4MB, SCSI, ETHERNET 43
MVME147SA-1 68030 CPU, 25MHZ, 8MB, SCSI, 6
MVME147SB-1 68030 CPU, 25Mhz, 16MB memory 54
MVME147SB-2 68030 CPU, 32Mhz, 16MB memory 2
MVME147SC-2 68030 CPU, 32Mhz, 32MB memory 1
MVME147SRF 68030 CPU, 16Mhz, 4MB memory 2



More information available on request: sales@alimartech.com



Motorola 162 Board              Motorola Logo              Motorola 162-2 Board

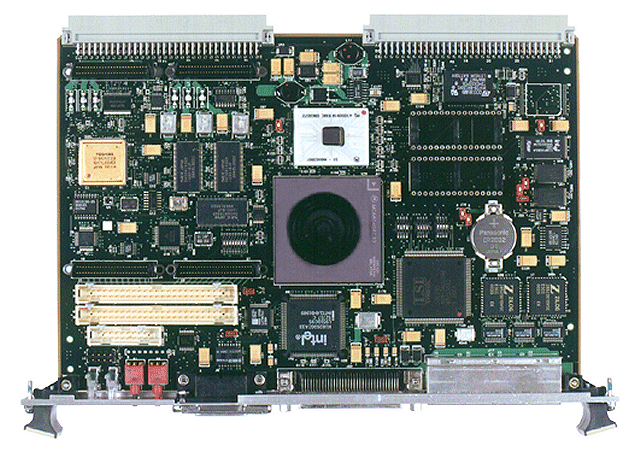

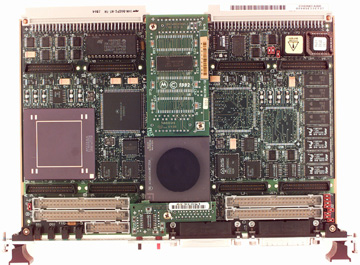

Motorola Embedded Controller - MVME - 162
  • 32 MHz MC68040 enhanced 32-bit microprocessor with 8KB of cache, and MMU and FPU
  • Optional 25 MHz MC68040 32-bit microprocessor with 8KB of cache, MMU, and FPU
  • Optional 25 MHz MC68LC040 enhanced 32-bit microprocessor with 8KB of cache and MMU
  • A32/D64 VMEbus master/slave interface with system controller function
  • High-performance DMA support for VMEbus D64 and local bus memory burst cycles
  • 4, 8 or 16MB of shared DRAM
  • 512KB SRAM with battery backup
  • 1MB Flash memory for on-board monitor/debugger or user installed firmware ·  8K x 8 NVRAM and time-of-day clock with battery backup
  • Two serial communication ports, console port as EIA-232-D DTE and second port user configurable for EIA-232-D/EIA-422 (V.36) DTE/DCE
  • Four 16- or 32-bit IndustryPack® ports with one DMA channel per port
  • Six 32-bit timers (four without VMEbus) and watchdog timer
  • Optional SCSI bus interface with 32-bit local bus burst DMA
  • Optional Ethernet transceiver interface with 32-bit local bus DMA
  • One 32-pin PLCC EPROM socket
  • Four-level requester, seven-level interrupter, and seven-level interrupt handler for VMEbus
  • Remote RESET/ABORT/STATUS control functions
  • On-board debugger and diagnostic firmware

MVME162-010A 68040 25MHZ CPU, 4MB, 4 IP, 2 SERIAL 2
MVME162-012 68040 CPU, 25Mhz, 4MB, 4 IP Ports, ETHERNET 5
MVME162-012A  68040 CPU, 25Mhz, 4MB, 4 IP Ports, ETHERNET 10
MVME162-013 68040 CPU, 25Mhz, 4MB, 4 IP Ports, SCSI, ETHERNET 9
MVME162-013A  68040, 25MHz, 4MB, 1MB Flash, SCSI, ETHERNET 1
MVME162-020 68040 25MHZ CPU, 4MB, 4 IP, 2 SERIAL 8
MVME162-022  68040 CPU, 25Mhz, 4MB, 4 IP Ports, ETHERNET 7
MVME162-023  68040 CPU, 25Mhz, 4MB, 4 IP Ports, SCSI, ETHERNET 6
MVME162-023A  68040 CPU, 25Mhz, 4MB, 4 IP Ports, SCSI, ETHERNET 5
MVME162-032 68040 CPU, 25Mhz, 8MB, 4 IP Ports, ETHERNET 34
MVME162-040  68040 CPU, 25Mhz, 8MB, 4 IP Ports 9
MVME162-211 68040, 4 MB DRAM, SCSI 1
MVME162-212 68040 CPU, 25Mhz, 4MB, 2 IP Ports, ETHERNET 62
MVME162-213 68040 CPU, 25Mhz, 4MB, 2 IP Ports, SCSI, ETHERNET 1
MVME162-215 68040 CPU, 25Mhz,  4MB Parity. SCSI 3
MVME162-222 68040 CPU, 25Mhz, 4MB 2
MVME162-223 68040 CPU, 25Mhz, 4MB memory, 2 IP Ports, ETHERNET 2
MVME162-253 68040 CPU,  25Mhz, 16 MB ECC DRAM, SCSI, Ethernet 17
MVME162-263 68040 CPU, 25Mhz, 16MB memory, 2 IP Ports, ETHERNET 7
MVME162-410 68040 CPU, 25Mhz, 16MB memory,  2 SIO,  4 DMA IP 12
MVME162-412 68040 CPU, 25MHz, 4MB, ETHERNET 1
MVME162-432
68040 CPU, 25MHz, 8MB, 4-IP,ETHERNET 1
MVME162-433
68040 CPU, 25MHZ, 8MB, 4-IP, SCSI, ETHERNET 3
MVME162-510A 68040 CPU, 32MHz, 4MB DRAM, 2SIO, 4 DMA IP 2
MVME162-512A 68040 CPU, 32MHZ, 4MB, 4-IP, ETHERNET 5
MVME162-522A 68040 CPU, 8MB, 2 serial, 1MB Flash, Ethernet, SCSI 77
MVME162-523 68040 CPU, 8MB, 2 serial, 1MB Flash, Ethernet, SCSI 1
MVME162-532A 68040 CPU, 32Mhz, 8MB, 4 IP, 2 Serial, SCSI, ETHERNET 1
MVME162P-242LE 68040 CPU, 25 MHz, 16 MB SDRAM, Ethernet 1
MVME162P-242LSE 68040 CPU, 25 MHz, 16 MB SDRAM, SCSI, Ethernet 1
MVME162P-244LE 68040 CPU, 25Mhz, 16MB, 2 SIO, 4 DMA IP, Ethernet 1
MVME162P-252SE 68040 CPU, 25 MHz, 32 MB SDRAM, SCSI, Ethernet 1
MVME162P-344 68040 CPU, 32Mhz, 16MB SDRAM, 2 SIO, 4 DMA IP 1
MVME162P-344E 68040 CPU, 32Mhz, 16MB, 2 SIO, 4 DMA IP, Ethernet 1
MVME162PA-242LE 68040 CPU, 25MHz, 16MB SDRAM, 2DMA IP, Ethernet 1
MVME162PA-244L 68040 CPU, 25MHZ, 16MB SDRAM, 2 SERIAL 1
MVME162PA-244LE 68040 CPU, 25MHZ, 16MB SDRAM, 2 SERIAL, ENET 1
MVME162PA-244LSE 68040 CPU, 25Mhz, 16MB, 2 SIO, 4 DMA IP, SCSI,  ENET 1
MVME162PA-344B 68040 CPU, 25MHZ, 16MB SDRAM, 2 SERIAL 6
MVME162PA-344E 68040 CPU, 25MHZ, 16MB SDRAM, 2 SERIAL 2
MVME162-512A 68040 CPU, 32Mhz, 4MB, ENET 2

More information available on request: sales@alimartech.com



MVME167-034B            Motorola Logo             MVME167-34B

Motorola Single Board Computer - MVME - 167
  • 25 or 33 MHz MC68040 32-bit microprocessor with 8KBof cache, MMU, and FPU
  • Full 32-bit master/slave VMEbus interface
  • High performance DMA supports VMEbus D64 and local bus memory burst cycles
  • 4, 8, 16, 32 or 64MB on-board DRAM, four-way interleaved, with parity checking
  • Checking and Correction (ECC) option
  • On-board SCSI interface with 32-bit local bus burst DMA
  • On-board Ethernet interface with 32-bit local bus DMA
  • Four 44-pin sockets for up to 4MB on-board ROM/EPROM
  • Four EIA-232-D serial ports implemented with quad serial I/O processor
  • 8-bit, bidirectional, Centronics® compatible parallel port
  • Four 32-bit timers and one watchdog timer
  • 8KB of NVRAM with real-time clock/calendar
  • Remote Reset/Abort/Status control functions
  • Completely programmable for maximum integration flexibility
  • Low power consumption—less than 20 watts typical
MVME165 68040 CPU, 25Mhz, 4MB memory, VSB, 2 serial ports 1
MVME167 Various options and configs, see below.. 5
MVME167-04A 68040U CPU, 25Mhz, 32MB 2
MVME167-031A  68040 CPU, 33Mhz, FPU, Ethernet, SCSI, DMA  3
MVME167-032B  68040 CPU, 33Mhz, 8KB, MMU, FPU, 8MB, ENET, SCSI 4
MVME167-033A  68040 CPU, 33Mhz, 8KB, MMU, FPU, 16MB, ENET, SCSI 2
MVME167-033B  68040 CPU, 33Mhz, 8KB, MMU, FPU, 16MB, ENET, SCSI 98
MVME167-034A 68040 CPU, 33Mhz, 8KB, MMU, FPU, 32MB, ENET, SCSI 23
MVME167-34B  68040 CPU, 33Mhz,8KB, MMU, FPU, 32MB, ENET, SCSI  15
MVME167-034B  68040 CPU, 33Mhz,8KB, MMU, FPU, 32MB, ENET, SCSI 15
MVME167-035B  68040 CPU, 33Mhz,8KB, MMU, FPU, 64MB, ENET, SCSI 24
MVME167-036B  68040 CPU, 33Mhz,8KB, MMU, FPU, 128MB, ENET, SCSI  2
MVME167P-036SE 68040 CPU, 33Mhz,8KB, MMU, FPU, 64MB, ENET, SCSI  24
MVME167P-35SE  68040 CPU, 33Mhz, 8KB, MMU, FPU, 32MB, ENET, SCSI 2
MVME167P-34SE  68040 CPU, 33Mhz, 8KB, MMU, FPU, 16MB, ENET, SCSI 13
MVME167-04  68040 CPU, 25 MHz, 32MB 5
MVME167A 68040 CPU, 25MHz, 8MB 1
MVME167C 68040 CPU, 25Mhz, 8KB, MMU, FPU, 4,8,16,or 32MB 1
MVME167P-24SE 68040 CPU, 25Mhz, 8KB, MMU, FPU, 16MB, ENET, SCSI 2
MVME167P-35SE 68040 CPU, 25Mhz, 8KB, MMU, FPU, 32MB, ENET, SCSI 5

More information available on request: sales@alimartech.com



P2 Adapter           Motorola Logo

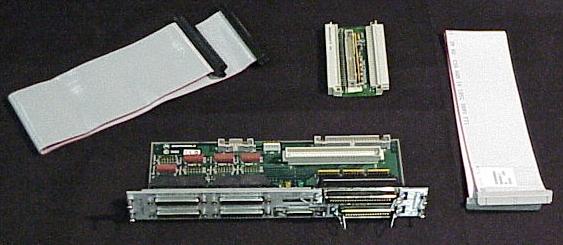

Motorola Single Board Computer - 712/M with P2 Adapter and Cables - Adapters
  • Four 25-pin multi-protocol EIA-232D serial ports
  • One independent printer port
  • Small Computer Systems Interface (SCSI)
  • shielded connector bus interface for connection to internal and external devices
  • SCSI resistors mounted in sockets for end of cable or middle of cable configuration
  • Modem connection on module
  • Serial: Four multi-protocol serial ports
  • Printer: Centronics printer port
MVME224A-3 MEMORY, 16 MB DRAM 1
MVME327A SCSI Adapter 1
MVME332XT 68010 Intelligent Communications Controller 5
MVME333-2 Serial Controller Card 2
MVME374 Ethernet Controller Board 4
MVME374-1 Ethernet Controller Board 5
MVME376 Ethernet Controller Board 7
MVME705-1 Adapter 331/333, 3-Channel with RS232 5
MVME705A VME3311333 CONN. BOARD 41
MVME705A w/RFI ADAPTER, 331,333, 6 CHANNEL, RS232, WITH RFI 3
MVME705A-001 ADAPTER, 331/333, 6 CHANNEL, RS422 4
MVME705B w/RFI ADAPTER, 331,333, 3 CHANNEL,RS232,WITH RFI 40
MVME708-001 TRANSITION MODULE FOR MVME117 SERIES 2
MVME710B ADAPTER, 332XT, 8 CHANNEL, SERIAL 20
MVME721-101 SCSI interconnect transition module 28
MVME712-103 SCSI interconnect transition module 23
MVME712-104 SCSI interconnect transition module 2
MVME712A 4 DB-9 serial ports, 1 RJ-11 connector, Centronics, P2 4
MVME712/AM Same as MVME712A, includes 2400 baud modem 4
MVME712B DB-15 Ethernet connector and SCSI connector 3
MVME712M Transition module for MVME147/167/177/187 101
MVME712/M Transition module for MVME147/167/177/187 101
MVME714 Transition module 12
MVME761-001 Tansition MVME260x, MVME270x, MVME360x, MVME460x 8
MVME761EXT MVME 761I/O Extension Module, Ethernet, SCSI , PMC 4

More information available on request: sales@alimartech.com



Motorola MVME177         Motorola Logo

Motorola Single Board Computer - MVME - 177
  • 50 or 60 MHz MC68060 32-bit microprocessor with 8KB of cache, MMU, and FPU
  • Full 32-bit master/slave VMEbus interface
  • High-performance DMA, supports VMEbus D64 and local bus memory burst cycles
  • 4, 8, 16, 32, 64, 128 or 256MB on-board DRAM, four way interleaved, with error checking and correction (ECC)
  • 128KB SRAM with battery backup
  • On-board SCSI interface with 32-bit local bus burst DMA
  • On-board Ethernet interface with 32-bit local bus DMA
  • 4MB of Flash ROM
  • Two 44-pin sockets for up to 2MB on-board ROM/EPROM
  • Four EIA-232-D serial ports implemented with quad serial I/O processor
  • 8-bit, bidirectional, Centronics® compatible parallel port
  • Four 32-bit timers and one watchdog timer
  • 8KB of NVRAM with real-time clock/calendar
  • Remote Reset/Abort/Status control functions
  • Completely programmable for maximum integration flexibility
  • Low power consumption—less than 20 watts typical

MVME172-253 68060 CPU, 64Mhz, 16MB 1
MVME172-263 68060 CPU, 60Mhz, 16MB 1
MVME177-002 68060 CPU, 50Mhz, 128KB, 8MB 2
MVME177-003 68060 CPU, 50Mhz, 128KB, 16MB 1
MVME177-004 68060 CPU, 50Mhz, 128KB, 32MB 12
MVME177-005 68060 CPU, 50Mhz, 128KB, 64MB 2
MVME177-006 68060 CPU, 50Mhz, 128KB, 128MB 3
MVME177-012 68060 CPU, 60Mhz, 128KB, 8MB  1
MVME177-013 68060 CPU, 60Mhz, 128KB, 16MB  1
MVME177-014 68060 CPU, 60Mhz, 128KB, 32MB  1
MVME177-015 68060 CPU, 60Mhz, 128KB, 64MB  1
MVME177-016 68060 CPU, 60Mhz, 128KB, 128MB  1
MVME177P-54SE 68060 CPU, 50Mhz, 128KB, 16MB, SCSI, Ethernet 2
MVME177P-55SE 68060 CPU, 50Mhz, 128KB, 32MB, SCSI, Ethernet 2
MVME177P-56SE 68060 CPU, 50Mhz, 128KB, 64MB, SCSI, Ethernet 1
MVME177P-64SE 68060 CPU, 60Mhz, 128KB, 16MB, SCSI, Ethernet 1
MVME177P-65SE 68060 CPU, 60Mhz, 128KB, 32MB, SCSI, Ethernet 2
MVME177P-66SE 68060 CPU, 60Mhz, 128KB, 64MB, SCSI, Ethernet 1
MVME177P-67SE 68060 CPU, 60Mhz, 128KB, 128MB, SCSI, Ethernet 1

More information available on request: sales@alimartech.com

CPCI       Motorola Logo

Motorola Single Board Computer - XIP68
  • Single or Dual 933 or 1Ghz Processors
  • SMP-enabled dual processor core and single processor option
  • Up to 2GB of ECC SDRAM via SO-DIMMs
  • CompactPCI Bus supports 64-bit PCI Interface
  • Graphics controller with 2MB of video memory
  • Up to two 64-bit/66Mhz PMC sites
  • Dual 10/100/1000BaseTX Ethernet via PICMG 2.6 or RTM
  • IDE controller for on-board or RTM mounted hard drive
  • Four USB ports (Rev 1.1)
  • CompactPCI bus, 32/64-bit, 33/66Mhz
XIP68-1120 1Ghz Single Processor, 1024MB memory, dual PMC sites 7
XIP68-2130 1Ghz Single Processor, 1536MB memory, single PMC site 4
XIP68-2140 1Ghz Single Processor, 2048MB memory, no PMC site 8
PMC243MOT-R40M   Ramix PMC 40GB Hitachi high capacity disks 32/66Mhz 70

More information available on request: sales@alimartech.com

All logo are trademarks of their respective companies -  Design is Intellectual Property
